Hacking CCTV FNKvision - Y215

· 4 min read
Vorachat Somsuay

Background​

One day, I decided I wanted to dive deeper into hardware and IoT hacking. But then I thought, “Where should I start?” So, I asked my friend (ChatGPT) for some beginner-friendly target ideas, and one of the suggestions was IP cameras. They are often embedded Linux devices, making them easier to research and reverse engineer.

Selecting the Target | FNKvision - Y215​

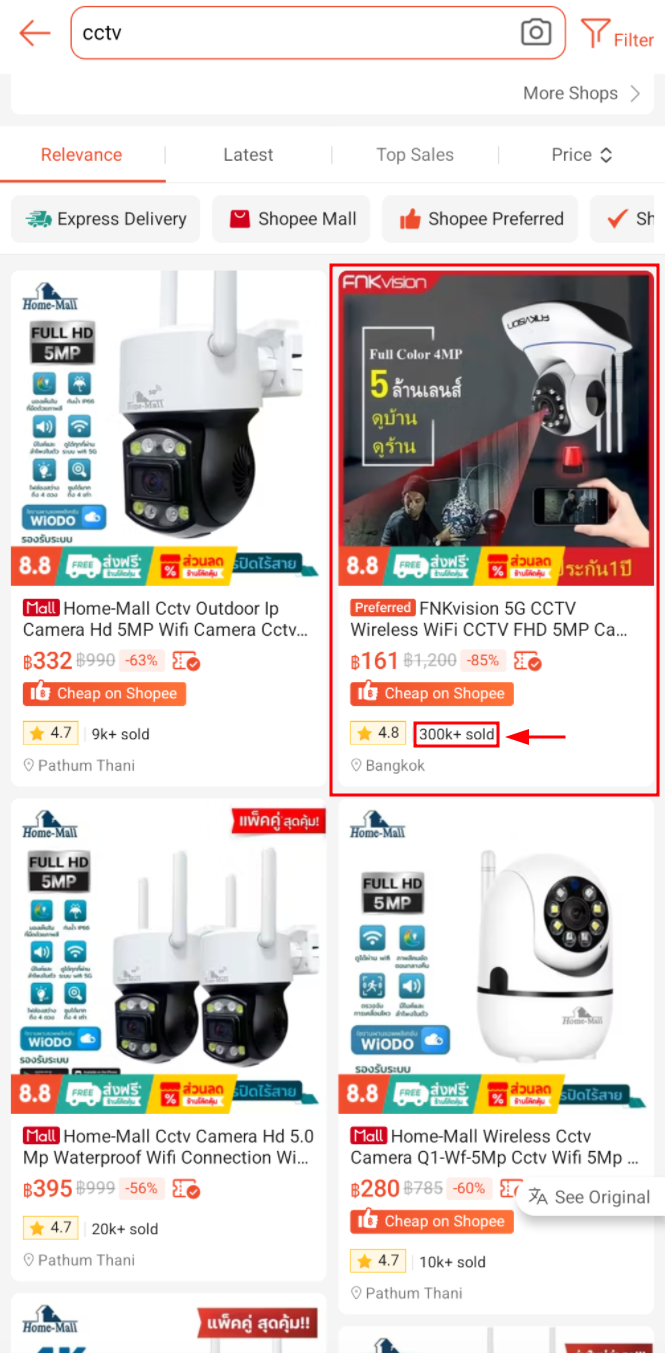

I opened Shopee and searched for CCTV cameras. There were tons of options, so I sorted them by top sales. The logic here is simple: if I find a bug, it’ll have more impact since more people are using the device.

One brand caught my eye with over 300,000 units sold. I picked the cheapest model (budget constraints, of course 😅) and placed my order.

shopee

Vulnerability #1: Hardcoded Root Credentials in Multiple Binaries​

Once the device arrived, I procrastinated... a lot. It sat in the box for a while Eventually, I decided to just get it over with.

I dumped the firmware using a CH341A programmer and loaded it into Ghidra. Running binwalk revealed two interesting binaries that looked like they could be the main programs.

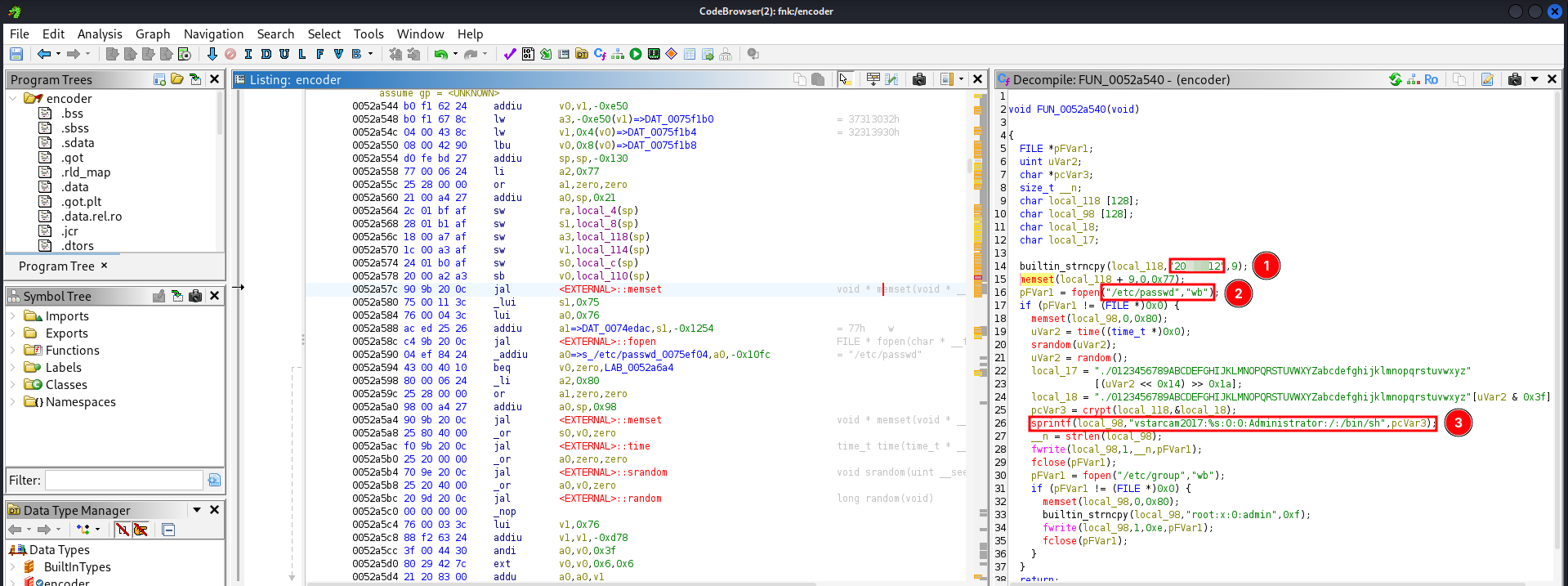

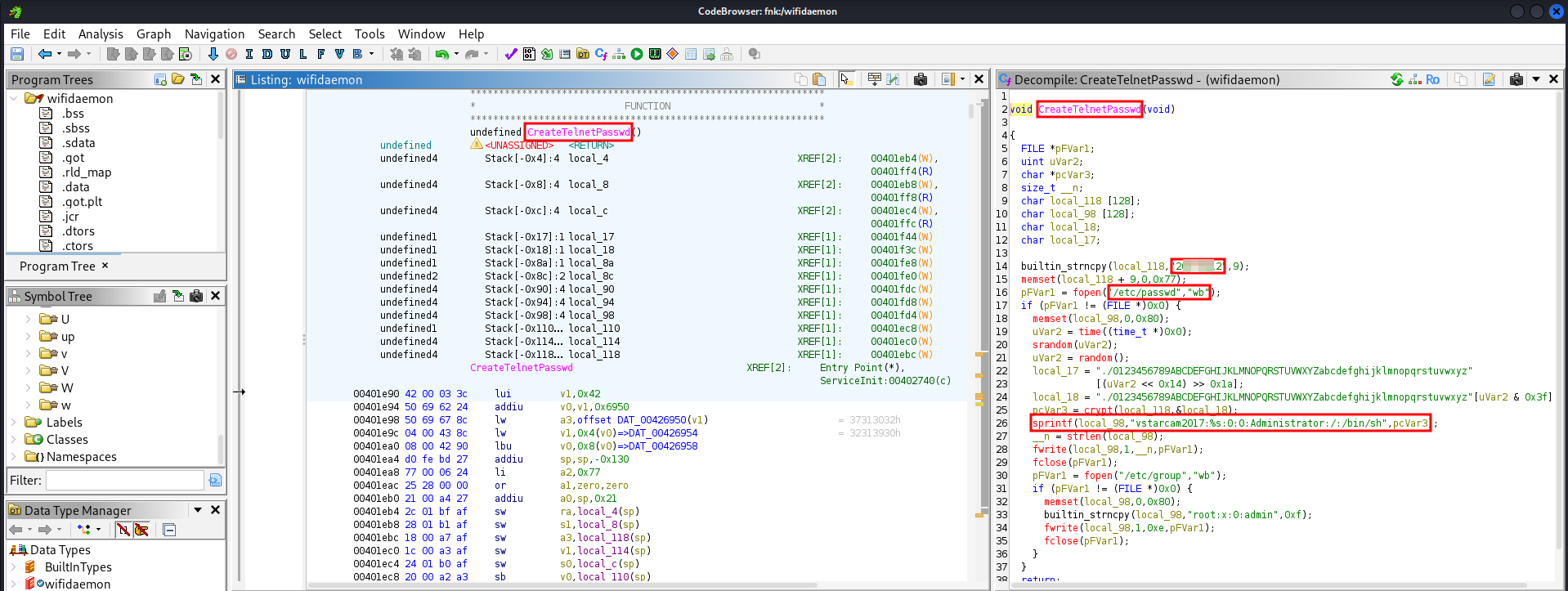

I searched for strings like "root:" and "administrator" and quickly found suspicious code in both the encoder and wifidaemon binaries.

encoder wifideamon

Both binaries include code to generate /etc/passwd and /etc/group files using hardcoded credentials:

builtin_strncpy(local_118,"2XXXXXX2",9);
...
sprintf(local_98,"vstarcam2017:%s:0:0:Administrator:/:/bin/sh",pcVar3);
  • Username: vstarcam2017
  • Password: "2XXXXXX2" (hashed via crypt() using DES)
  • Privilege: Root shell access (/bin/sh)

I validated the credentials using the camera’s UART connection, and yes, it logged in as root.

Vulnerability #2: SSID and Wi-Fi Password Stored in Plaintext​

Next, I looked for sensitive information. Sure enough, the Wi-Fi SSID and password were stored in plaintext on the device.

Method 1: Firmware Dump​

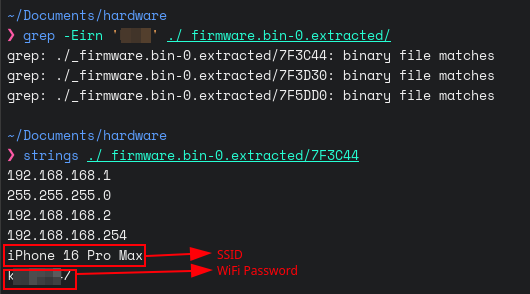

After dumping the firmware, I ran a simple grep for my Wi-Fi SSID and found this:

firmware_dump_wifi_creds

The file clearly contains both the SSID and password in plaintext. Anyone with access to the firmware (e.g., via resale, disposal, or theft) could extract your network credentials.

Method 2: Serial Access​

Using the serial console, I explored the filesystem and found the same credentials stored in /tmp/wpa_supplicant.conf:

telnet_wifi_creds

I also found system/param/network.ini in the file system similar to one found in previous method with the same values:

telnet_wifi_creds_ini

Vulnerability #3: SD Card Factory Backdoor​

This one was wild. While exploring leftover functions in the firmware, I found something intriguing: the camera scans for files on the SD card, including:

  1. s1_test_config – a JSON file used to set Wi-Fi credentials.
  2. s1_rf_test_config – here's where it gets interesting.

If s1_rf_test_config is present on the SD card, the camera executes several commands without even reading the file contents including launching Telnet:

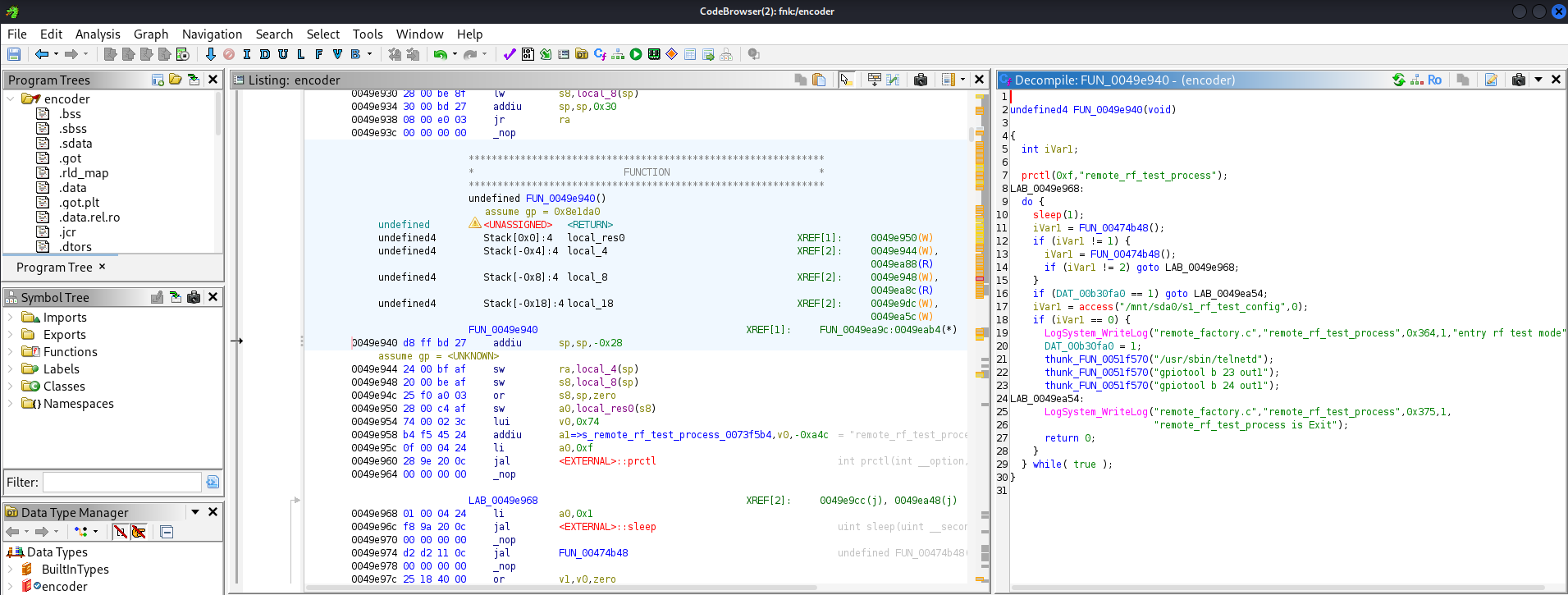

ghidra_backdoor

if (access("/mnt/sda0/s1_rf_test_config",0) == 0) {
  thunk_FUN_0051f570("/usr/sbin/telnetd");
}

This undocumented backdoor is a huge risk, especially with physical access.

Proof of Concept​

Before inserting the SD card:

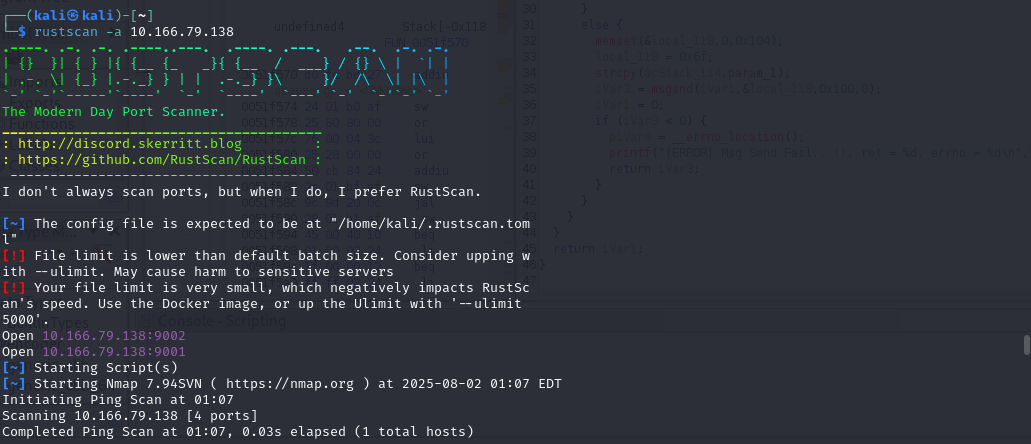

rustscan_1 Only ports 9001 and 9002 are open.

Then I created an empty file called s1_rf_test_config:

file_create

After rebooting the camera with the SD card inserted:

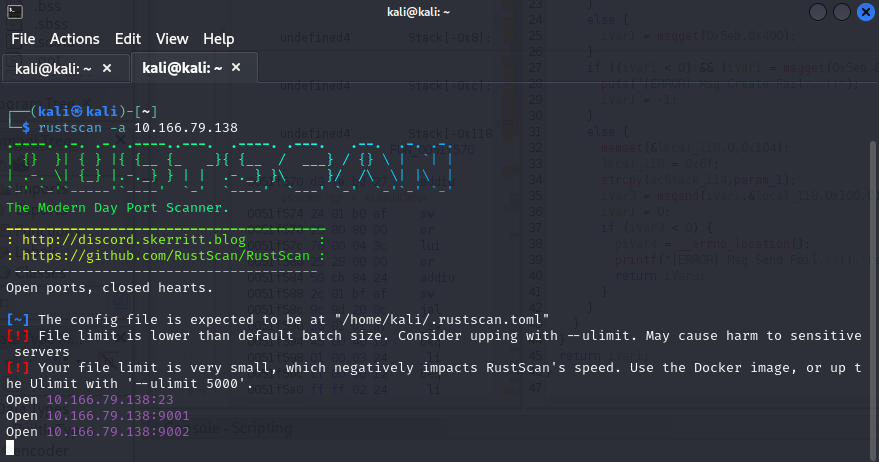

rustscan2 Telnet is now open.

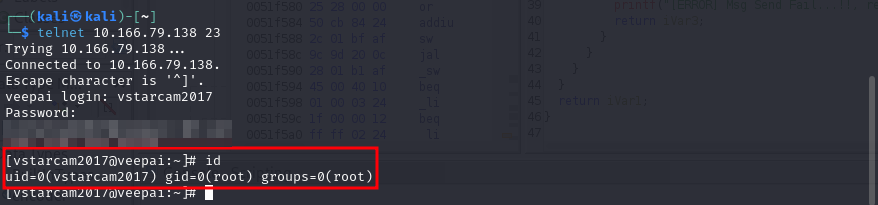

Using the previously discovered credentials, I logged in and boom, root shell:

shell

Vulnerability #4: Weak Password Hashing (DES)​

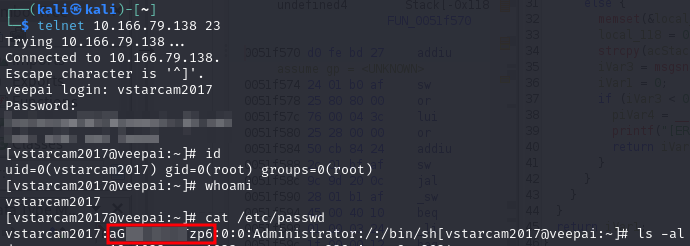

Once I had shell access, I checked /etc/passwd and confirmed that the password hash matched what I saw in the hardcoded code, a 13-character DES-based crypt hash.

/etc/passwd

  • Hash Example: aGBgLZI/7Tzp6
  • Can be cracked easily using hashcat with mode 1500.
hashcat -m 1500 -a 3 aGBgLZI/7Tzp6 ?d?d?d?d?d?d?d?d --increment

It took just 30 seconds to crack the hash using digits only. Yes, I already knew the password, but this demonstrates how weak DES is by today’s standards.

Conclusion​

This was a fun and eye-opening project. Some parts of the system were more secure than I expected, for example:

  • UART access required login
  • Mobile app used SSL pinning

…but overall, the presence of hardcoded root credentials, plaintext Wi-Fi storage, an SD card-triggered backdoor, and weak password hashing is deeply concerning.

More research coming soon, stay tuned!
